Legenda Standard Style

Buoys & Beacons (Lateral)

---

Buoys & Beacons (Cardinal)

---

Other Buoys & Beacons

---

Lights

---

Fog signal

---

Restricted

---

Regulated

---

Rocks, Wrecks & Obstructions

---

Other Marine objects

---

Fishing charts (only in Italy)

---

Marine Points Of Interest (POI)

---

Landmarks

---

Generic Points Of Interest (POI)

---

Transportation

---

History

---

Outdoor Points Of Interest (POI)

---

Outdoor activities

---

Outdoor Winter Activities



---

---

Buoys & Beacons (Lateral)

Click here to see the IALA (International Association Lighthouses Authorities) System for more information about the Lateral Marks Maritime Buoyage System.

Green Later mark buoy (CAN)

IALA "A" : Starboard hand marks with conical topmark (if any).

IALA "B" : Port hand marks with cylindrical topmark (if any).



Red Later mark buoy (NUN)

IALA "A" : Port hand marks with cylindrical topmark (if any).

IALA "B" : Starboard hand marks with conical topmark (if any).



Bifurcation mark buoy

This mark indicates that a "preferred" channel (often, a deep channel suitable for heavy commercial traffic) lies to one side, and a secondary channel on the other. Vessels wishing to use the preferred channel observe the top colour of the mark, and vessels wishing to use the secondary channel observe the bottom colour.



Green Later mark beacon

IALA "A" : Starboard hand marks with conical topmark (if any).

IALA "B" : Port hand marks with cylindrical topmark (if any).



Red Later mark beacon

IALA "A" : Port hand marks with cylindrical topmark (if any).

IALA "B" : Starboard hand marks with conical topmark (if any).



Bifurcation mark beacon

This mark indicates that a "preferred" channel (often, a deep channel suitable for heavy commercial traffic) lies to one side, and a secondary channel on the other. Vessels wishing to use the preferred channel observe the top colour of the mark, and vessels wishing to use the secondary channel observe the bottom colour.



IALA System

Remember: Lateral marks have opposite meaning in different areas of the world (IALA system see below images).

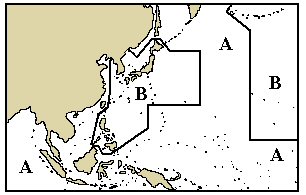

The world has been subdivided in two IALA areas:

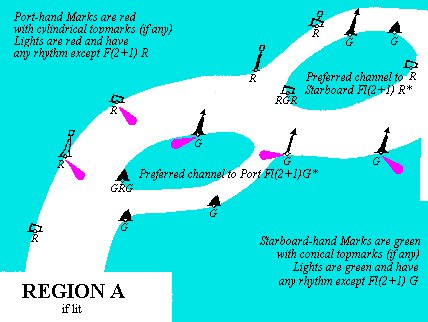

IALA "A" : Europe, Africa, Australia, New Zealand and most of Asia except for Japan-Koreas-Philippines

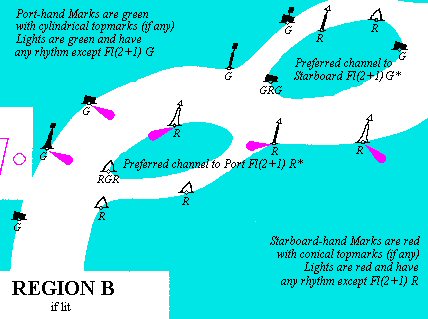

IALA "B" : Americas and Japan-Koreas-Philippines



---

---

Buoys & Beacons (Cardinal)

Click here to see the IALA (International Association Lighthouses Authorities) System for more information about the Cardinal Marks Maritime Buoyage System.

North cardinal mark

South cardinal mark

West cardinal mark

East cardinal mark

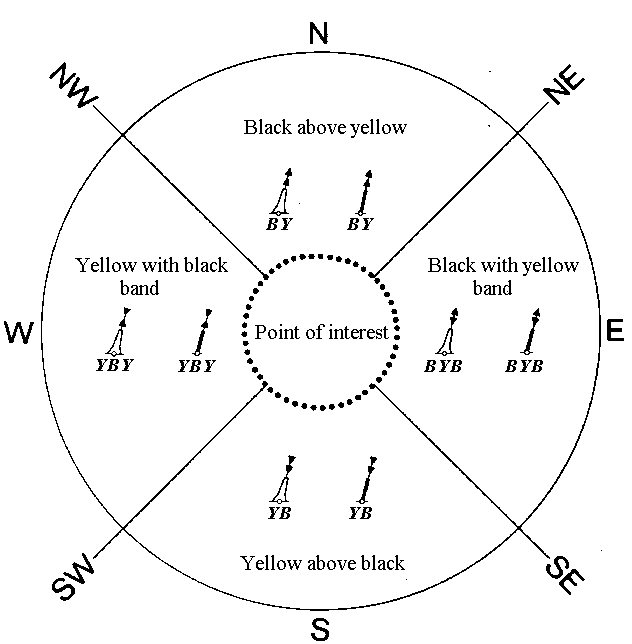

Cardinal Marks IALA System

Cardinal marks indicate the direction of safety as a cardinal (compass) direction (north, east, south or west) relative to the mark.

A cardinal mark indicates one of the four compass directions by:

• the direction of its two conical top-marks, which can both point up, indicating north; down, indicating south; towards each other, indicating west; or away from each other, indicating east
• its distinctive pattern of black and yellow stripes, which follows the orientation of the cones - the black stripe is in the position pointed to by the cones (e.g. at the top for a north cardinal, in the middle for a west cardinal)
• optionally, its distinctive sequence of flashing light, which consists of a sequence of quick or very quick flashes whose number gives the clockface position which corresponds to the direction of the cardinal (e.g. three for an east cardinal, nine for a west; north has continuous flashes, and south may be augmented with a long flash, to help distinguish it from a west in difficult conditions)

A cardinal mark may be used to accomplish the following:

• Indicate that the deepest water is an area on the named side of the mark
• Indicate the safe side on which to pass a danger
• Draw attention to a feature in a channel, such as a bend, junction, branch, or end of a shoal
• Draw attention to a new danger such as a grounded ship. In such cases two equal marks are often placed together to indicate that it's a newly marked danger and is not yet printed in official charts.





Other Buoys and Beacons

Buoy Isolated Danger

Buoy Safe Water

Buoy Special Purpose

Buoy Installation

Mooring Buoy



Lights

Light or Lighted Structure (Single color)

Multi Lights

Flood Light



Strip Light

Light Vessel



Fog signal

Bell, Horn, Whistle, Gong, Explosive, Diaphone, Siren, Reed, Typhon.... fog signal.



Restricted

Anchoring Prohibited

Fishing Prohibited

Entry Prohibited

Spear Fishing Prohibited

Diving Prohibited

Jet-Ski Prohibited

Water-Ski Prohibited

Entry Restricted

Restricted Area



Regulated

Anchoring regulated

Caution Area

Dumping Ground Area

Sea Plan landing area

Cables area



Rocks, Wrecks & Obstructions

Emerged Rock

Submerged Rock

Dangerous Rock

Emerged Wreck

Submerged Wreck

Dangerous Wreck

Bottom Obstruction



Other Marine objects

Radar Reflector

Radar Station

Radio Call-in Point

Rescue Station

Water Turbolences

Pile

Offshore Platform

Marsh, Swamp



Fishing charts (available only in Italy at the moment)

Punto o Area di Pesca da terra (On land fishing place or area)

Punto o Area di Pesca dalla barca (On the boat fishing place or area)

Punto o Area di Pesca subacquea (Spear fishing place or area)

Punto o Area di Avvertimento (Warning place or area)

Punto o Area di Divieto (Forbidden place or area)

Punto o Area di Regolamentazione (Regulated place or area)

Guardia Costiera (Coast Guard)

Negozio di pesca (Fishing shop)

Informazione generica (Generic info)



Marine Points Of Interest (POI)

Tugboat Service

Water Taxi

Beach

Boat Ramp

Coast Guard

Crane

Ferry

Lighthouse

Marina

Yacht Club

Navigation Equipment

Port, Port Agency

Shipyard



Landmarks

Chimeny

Silo

Lighthouse

Flare Stack

Mast

Lighted Mast

Tower

Lighted Tower

Fortified Structure

Water Tower

Triangulation Point

Observation Point

Check Point

Benchmark

Flagpole

Windmill

Dish Aerial



Generic Points Of Interest (POI)

Restaurant

Bar, Pub

Restroom, Toilets

Hotel, Motel

Grocery Store

First Aid, Hospital, Clinic

Fire Station

Telephone

Bank

Train Station

Information

Gym

Stadium

Swimming

Golf Course

Shower

Building

Kids Area

Bridge

Parking

Police

Post Office

Travel Agency

Weather Forecast

Dam

Point Of Interest



Transportation

Fuel Station

Taxi

Car Rental

Bus

Helicopter Airport

Airport



History

Museum

Archaelogical Site

Church

Cemetery



Outdoor Points Of Interest (POI)

Park, Forest

Picnic Area

Outdoor Equipment

Hut, Shelter

Bivouac

Cabin

Outdoor Guide Service

Lookout

Landslide

Cairn

Peak

Mountain Pass

Spring

Water Point

Stockyard

Wild Animals

Waterfall

Ford

Rapids

Volcano

Campground

Caravan Park

Caravan Pullout



Outdoor activities

Hiking, Walking

Off Road Vehicle

ATV

Climbing

Cycling

Mountain Biking

Horse Back Riding

Hunting



Outdoor Winter Activities

Ski Resort, Ski Area

Alpine Ski

Cross Country Ski

Snow Board

Snowmobile

Ski Equipment, Ski Rent

Ski School

Ticket Office
